| Measurement Range | 0~10m…400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2 X of the rated range |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±0.1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m ,0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
1. please ensure that the measured medium is compatible with the
contacting parts of the product.
2. The density of the measured medium should be specified.
3. For special requirements such as strong vibration, instantaneous
impact force, strong electromagnetic interference, or radio
frequency interference, please inform our company and specify in
the order.
4. To ensure the reliable operation of the product, it is
recommended that users install lightning protection devices on-site
and ensure the product and power supply are reliably grounded.
5. When equipped with an LED or LCD display head, the transmitter
power supply voltage should not be lower than 15VDC.
6. The installation position should be reasonable, avoid external
interference and damage, and facilitate maintenance and cleaning.
7. The equipment should be checked and calibrated before
installation to ensure that it is working properly.
Order Guide:
| BH93420 | Code | Outline Construction |

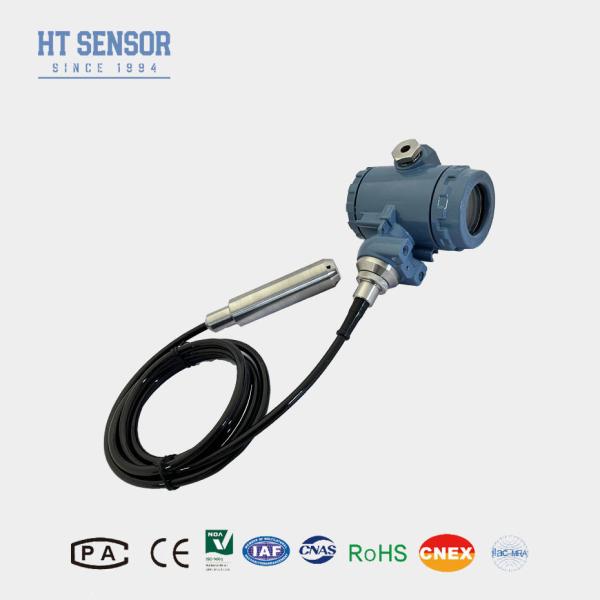

| II/III | Liquid level transmitter with the 2088 housing |
| Measurement Range | 0~10m…400m |
| Code | Power Supply |
| D1 | 24VDC |
| Code | Output Signal |
| S1 | 4~20mADC | S2 | RS485 |
| Code | Electrical Connection |
| B4 | 2088 industrial housing |
| B5 | 2088 with display |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| Code | Material |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| Code | Cable Material |
| C1 | PE |
| C2 | PU |
| C3 | PTFT |
| |
FQA:
1. Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our
technical team has more than 20 engineers.
2. Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our
sensors.
3. Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
4. Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5
working days.
