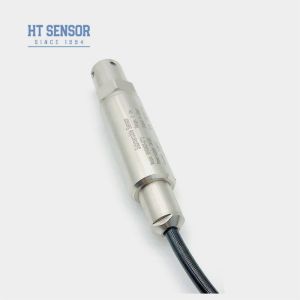

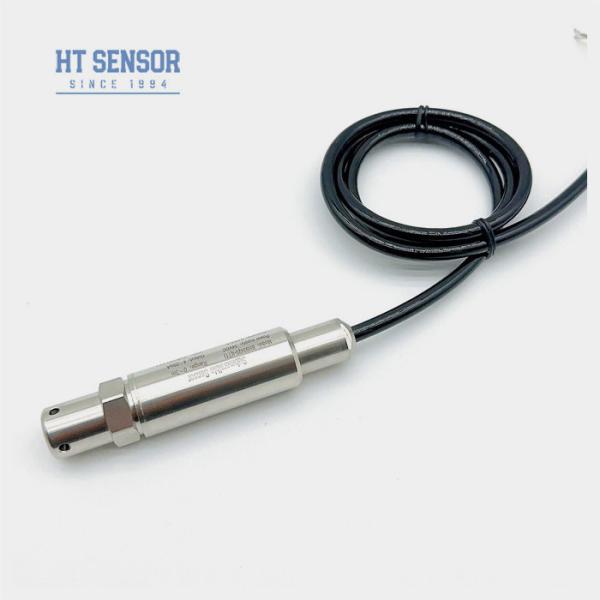

BH93420 IT Sumersible liquid level transmitter
Introduction of liquid level Transmiter:
BH93420-I Sumersible liquid level transmitter that produced with the original components of the German SENSE pressure
sensor, which is mainly used for the liquid level measurement of
urban water supply and drainage, water treatment plants,
reservoirs, rivers, oceans, oil storage tanks, as well as
petroleum, chemical, electric power and other departments. The
measured medium can be water, oil, acid, alkaline and viscous
liquid. The instrument outputs the double wire 4~20mADC standard
current signal, with advanced technology, high precision, stable
and reliable quality, easy to install and use, etc., is an ideal
liquid level instrument in process detection and control system
Product Features of liquid level Transmiter:
1. All stainless steel shell, suitable for all kinds of testing
environment.
2. Immersion probe measurement, easy installation.
3. A variety of output signal selection.
4. Explosion-proof marks: ExiaIICT6.
5. High protection level :IP68.
6. PE or PU cable.
Applications of liquid level Transmiter:
1. Compatible with 316LSS,noncorrosive liquids
2. Monitoring water levels in various applications such as sewage,
industrial and municipal water, water tanks, wells, rivers,
seawater, lakes, etc
3. Measuring fuel levels in diesel and fuel tanks
| Performance Parameters of liquid level Transmiter |
|---|
| Measurement Range | 0~10m…400m |
|---|
| Overload | ≤ 2 X of rated range |
|---|
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
|---|
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
|---|
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
|---|
| Long-Term Stability | ±0.2%F.S/year (Max.) |
|---|
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
|---|
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
|---|
| Compensation Temperature | 0-50ºC (0-1m. 0-2m ); 0-70ºC |
|---|
| Operating Temperature | -20~80ºC |
|---|
| Storage Temperature | -30~100ºC |
|---|
| Vibration | 10g,55Hz ~ 2kHz |
|---|
| Housing Material | 1Cr18Ni9Ti |
|---|
| Diaphragm Material | 316L Stainless Steel |
|---|
| Insulation Resistance | >=100MΩ@100VDC |
|---|
| Explosion-proof Rating | ExiaIICT6 |
|---|
| Protection Rating | IP67, IP68 |
|---|
| O-Ring Seal | Fluoro rubber |
|---|
| Weight | ~0.3Kg (without cable) |
|---|
| Cable Material | Polyethylene, Polyurethane |
|---|
| Output Signal | Supply Voltage | Output Type |
|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V | 5VDC |
| RS485 Communication Protocol |
1. Please ensure that the measured medium is compatible with the
product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference,
please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is
recommended that users install lightning protection devices on-site
and ensure the product and power supply are reliably grounded.| Order Guide of liquid level Transmiter |
|---|
| BH93420 | Code | Outline Construction |
| I | Pressure Transmitter |
| Measurement Range | 0~10m…400m |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | S8 | RS485 |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| Code | Material |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| Code | Cable Material |
| C1 | PE |
| C2 | PU |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance.
Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure
sensor transmitters per month, so we are fully capable of meeting
the needs of large-scale orders. However, it is advisable to
contact our sales team in advance to ensure smooth production and
delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may
vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term
partners.
6. Q: What is the warranty of your products? And after-sales
service?
A: Our warranty time is 24 months after shipment, and our
after-sales will respond with your questions in 24hrs, remote
instruction by PC network is always available.
